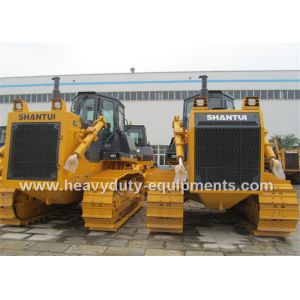

Shantui Bulldozer SD32D , 37tons Weight ,Cummins Engine , 10cbm
Dozing Capacity , Three-Shank Ripper
Specification:
| ITEM | SD32D | Engine | Cummins NTA855-C360S10 |
| L×W×H (Ripper not included) | 6880×4130×3725mm | Ripping depth of ripper | Three-shank ripper 842mm |
| Operating weight (Ripper not included) | 37.2t |
| Rated power | 235/2000kW/rpm | Lifting height of ripper | Three-shank ripper 883mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade Semi-U-blade Angle blade | Number of track rollers (each side) | 7 |
| Blade width | Straight tilt blade 4130×1590mm | Number of track shoes (each side) | 41 |
| Semi-U blade 4030×1720mm | Width of track shoe | 760mm |
| ----- | Track gauge | 2140mm |
| Angle blade 5000×1140mm | Ground length and ground pressure | 3150-0.076mm/MPa |
| Dozing capacity | Straight tilt blade 10m3 | Pitch | 228.6mm |
| Semi-U blade 11.9m3 | Forward speed | 0–3.6km/h |
| --- | 0–6.6km/h |
| Angle blade 6m3 | 0–11.5km/h |
| Ma× drop below ground of blade | 560 mm | Reverse speed | 0–4.4km/h |
| Lift height of blade | 1560 mm | 0–7.8km/h |
| Ripper type | Single ripper Three-shank ripper | 0–13.5km/h |
Description:
SD32D desert bulldozer is researched and developed independently on
the basis of SD32 standard bulldozer in response to the demands of
desert working conditions.
Engine power/speed:235kW/2000rpm
Operating weight of whole machine: 37500kg
Blade capacity: 10 for straight tilting blade 6.2 for angle blade
11.7 for Semi-U blade
Advantages:
● This product adopts hydraulic drive and hydraulic control
technologies, featuring advanced and reasonable structure, stable
and reliable performances, and light and flexible operations.
●It’s equipped with Cummins NTA855-C360 engine, of which the
pistons, cylinder sleeves, piston rings, and piston pins adopt the
originally imported Cummins products.
● The high capacity sand-retaining radiator and the engine intake
prefilter are equipped to abundantly adapt to the climate
characteristics of serious sand wind and high air temperature in
deserts and semi-deserts and the earthworks in deserts and
semi-deserts.
Application:
Earthworks in desert zones.
