Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology

Shandong Sinomtp Construction Equipment Company Limited
Contact Now
    Buy cheap Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology from wholesalers

    Buy cheap Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology from wholesalers
    • Buy cheap Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology from wholesalers

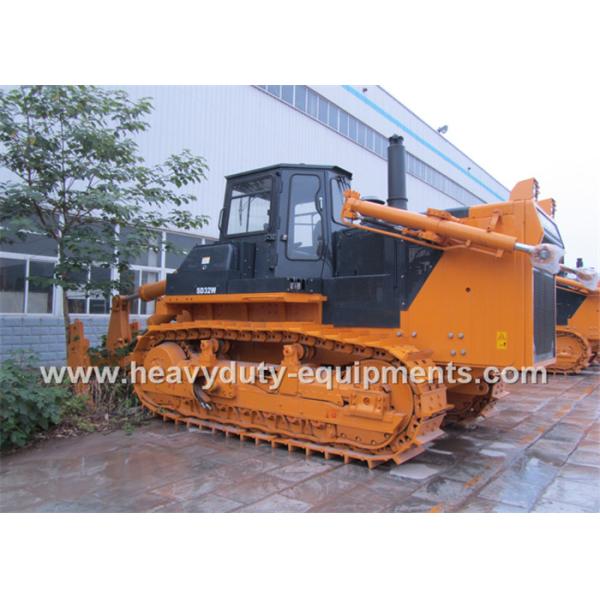

    Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology

    Ask Lasest Price
    Brand Name : SINOMTP
    Model Number : SD32D
    Certification : ISO, CCC, BV
    Price : Negotiable
    Supply Ability : 100 units per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology

    Shantui bulldozer SD32D for desert condition with 320hp engine and hydraulic control technology


    ITEMSD32DEngineCummins NTA855-C360S10
    L×W×H (Ripper not included)6880×4130×3725mmRipping depth of ripperSingle ripper 1250mm
    Operating weight (Ripper not included)37.2tThree-shank ripper 842mm
    Rated power235/2000kW/rpmLifting height of ripper

    Single ripper955mm

    Three-shank ripper 883mm

    Gradeability30°Number of carriers (each side)2
    Blade type

    Straight tilt blade Semi-U-blade

    Angle blade

    Number of track rollers (each side)7
    Blade widthStraight tilt blade 4130×1590mmNumber of track shoes (each side)41
    Semi-U blade 4030×1720mmWidth of track shoe760mm
    -----Track gauge2140mm
    Angle blade 5000×1140mmGround length and ground pressure3150-0.076mm/MPa
    Dozing capacityStraight tilt blade 10m3Pitch228.6mm
    Semi-U blade 11.9m3Forward speed0–3.6km/h
    ---0–6.6km/h
    Angle blade 6m30–11.5km/h
    Ma× drop below ground of blade560 mmReverse speed0–4.4km/h
    Lift height of blade1560 mm0–7.8km/h
    Ripper type

    Single ripper

    Three-shank ripper

    0–13.5km/h

    Description:

    SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of desert working conditions.

    Engine power/speed:235kW/2000rpm

    Operating weight of whole machine: 37500kg

    Blade capacity: 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade


    Advantages:

    ● This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.

    ●It’s equipped with Cummins NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products.

    ● The high capacity sand-retaining radiator and the engine intake prefilter are equipped to abundantly adapt to the climate characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts.


    Application:

    Earthworks in desert zones.
